CNC Drilling and Marking Angle Line Machine

CNC Drilling and Marking Angle Line Machine

Model No.︰BLG2532

Brand Name︰Tianchen Machine

Country of Origin︰China

Unit Price︰-

Minimum Order︰1 set

Inquire Now

Product Description

Applicable industryThe machine is the special equipment used for angle steel type, drilling etc. and automatic production in the field of power and telecommunication.
Product feature
1.High-efficiency processing equipment for tower manufacturing industry-Drilling,marking,CNC automatic production line for angle.
2.Mainly for drilling large and high-intensity angles
3. Precision spindle,high-speed dilling.
4.The drilling unit is equipped with six CNCdrills.All the holes on the angle can be completed in one time.
5.Use high-speed carbide drills with inner cooling.
6.The machining process is numerical control and operation is very convenient.It can fulfill automation,high-precision,multi-species and high quantity production.
7.The upper computer adopts English interface which is easy to operate.It can accept certain processing program which is made from special software.And also you can program manually.
8.Marking unit adopts closed frame with good rigidity.Marking stadia can be set at will.
9.CNC infeed carriage is driven by servo motor.The photoelectric encoder feeds back the information.Closed loop control to ensure high positioning precision.
10.Key hydraulic, pneumatic and electric parts all imported.
Product Basic Parameter
Model
BLG2532
Angle Size  (mm)
140x140x10~250x250x32
Max. Drilling diameter (mm)
Ø 40
Marking nominal force (KN)
1030
Max.  workpiece length (m)
14 or 12 (by user's request)
Adjustment range of back mark (mm)
50-220 (stepless adjustment)
drills number per side
3
Marking groups
1
Characters per marking group
18
Dimension of marking characters (mm)
14x10x19
CNC axes number
7
Infeeding speed (m/min)
40
Max.  Drilling stroke (mm)
85
Rotation speeds (r/min)
Max.600
Overall dimensions(m)
29x8.9x2.5
Net weight (kg)
21000

Payment Terms︰ TT/LC

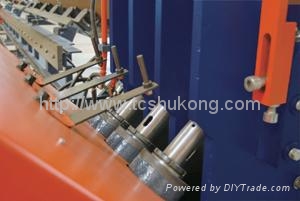

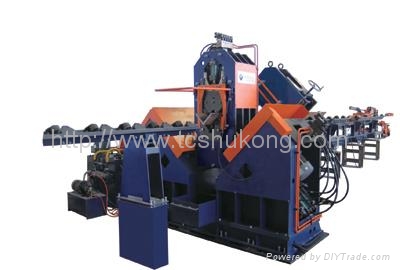

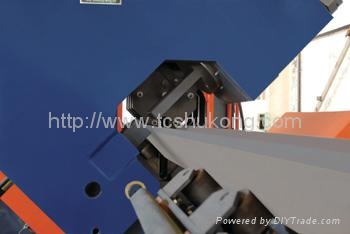

Product Image
